Structural Cantilever Racking

Heavy-Duty Storage Systems for Long and Oversized Materials

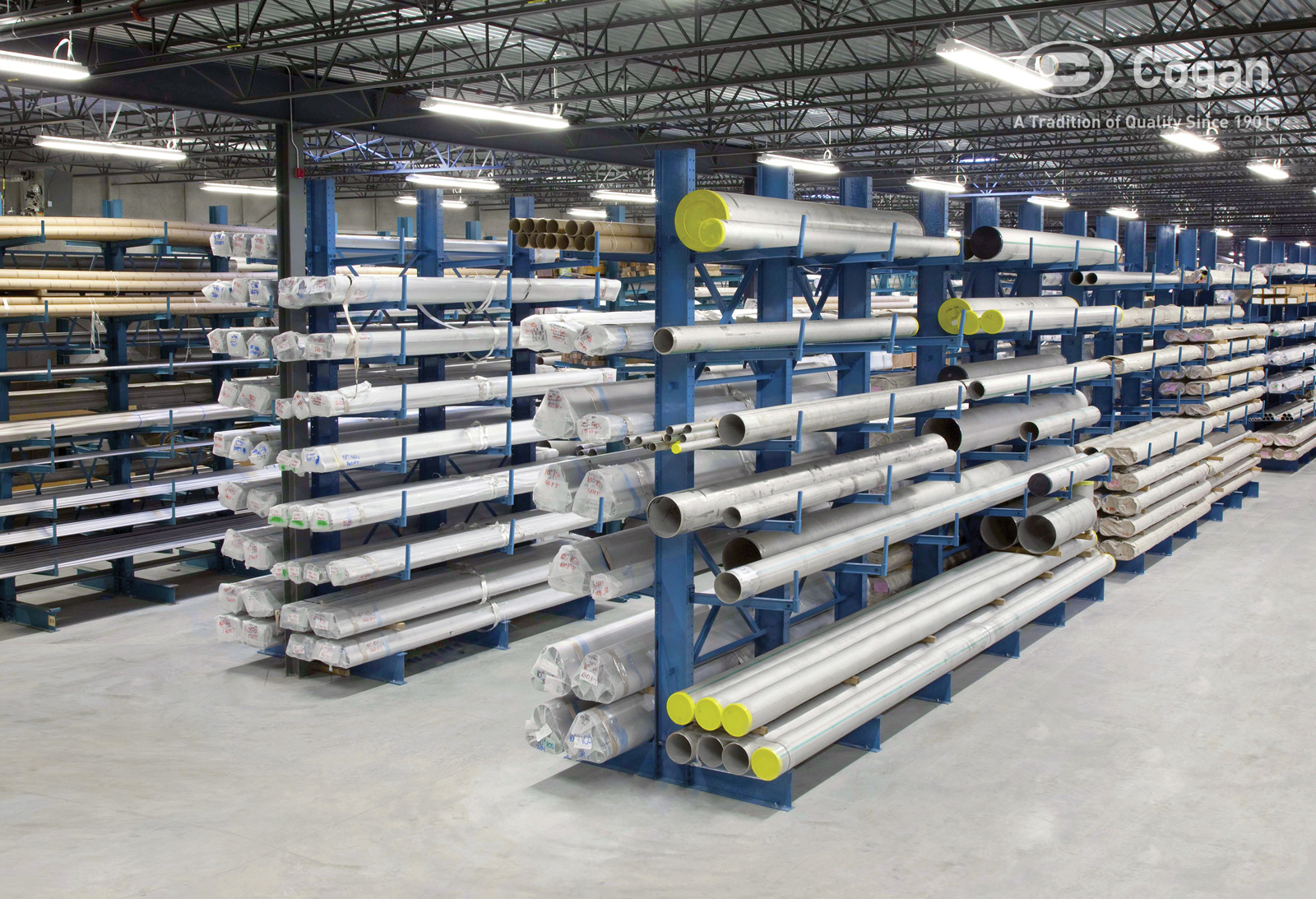

Structural cantilever racking is engineered for the storage of long, oversized, and high-weight materials such as steel tubing, lumber, panels, and construction products. Systems are constructed from structural steel components, including wide-flange columns, bolted load arms, reinforced base plates, and heavy bracing assemblies.

Compared to a standard quick-ship cantilever, a structural cantilever provides higher load capacity, increased impact resistance, and improved performance in outdoor and industrial environments. These systems are commonly specified for steel service centers, lumber yards, manufacturing facilities, and building material distribution operations.

RACKsteel designs and supplies engineered structural cantilever racking systems for industrial applications across Canada.

System Design and Configuration

RACKsteel engineers structural cantilever systems based on site-specific loading, environmental, and operational requirements. System design considerations include:

Material type, length, and weight distribution
Required arm capacities and deflection limits
Column height and foundation interface conditions
Bracing configuration and bay spacing
Equipment access and load handling methods
Indoor versus outdoor exposure conditions
Structural and seismic code requirements

Arm lengths, column profiles, and base assemblies are selected to support specified load capacities while maintaining long-term structural performance.

Structural Cantilever Performance Characteristics

Structural cantilever racking systems provide the following performance advantages:

High load capacity per arm and per column
Increased resistance to forklift and material impact
Suitable for long-span and oversized materials
Outdoor and yard storage compatibility
Reduced maintenance compared to lighter-duty systems
Compatibility with forklifts, side loaders, and cranes

Systems are engineered for continuous industrial use and heavy material throughput.

Fabrication and Custom Engineering

RACKsteel provides custom fabrication for structural cantilever applications requiring non-standard configurations. Custom engineering options may include:

Modified arm lengths and arm profiles
Increased column heights and section sizes
Reinforced base plates and anchoring systems
Specialized bracing layouts
Corrosion-resistant coatings and finishes
Integration with slab and foundation design requirements

Engineering documentation is provided for all installations, including load calculations and stamped drawings where required for permitting and compliance.

Applications

Structural cantilever racking systems are commonly specified for typical stored materials such as:

Lumber
Pipe
Metal Sections
Extrusions
Sheet Goods
Fabricated Components
Construction Materials
Crates

These systems are selected when a standard quick-ship cantilever does not meet required load ratings, durability expectations, or environmental exposure conditions.

For application and capacity confirmation, contact a RACKsteel team member today.

Engineering, Installation, and Compliance

RACKsteel provides complete project support for structural cantilever installations, including:

Engineering and layout development
In-house drafting and load verification
Structural and seismic compliance review
Foundation and anchoring coordination
Professional installation by RACKsteel’s trained internal crews

All systems are designed and supplied in accordance with applicable Canadian building codes, seismic design standards, and site-specific structural requirements.

Integration With Material Handling Equipment

Structural cantilever systems are designed to operate well with heavy material handling equipment, including:

Counterbalance forklifts
Side loaders
Multi-directional forklifts
Overhead cranes (where applicable)

Rack geometry, aisle clearances, and arm elevations are coordinated with equipment specifications to support safe and efficient loading and unloading operations.

Request a Structural Cantilever Assessment

To evaluate structural cantilever racking for your facility, submit a request with material specifications, load requirements, environmental conditions, and site constraints. A RACKsteel representative will review the information and provide a technical assessment, system configuration, and pricing.
