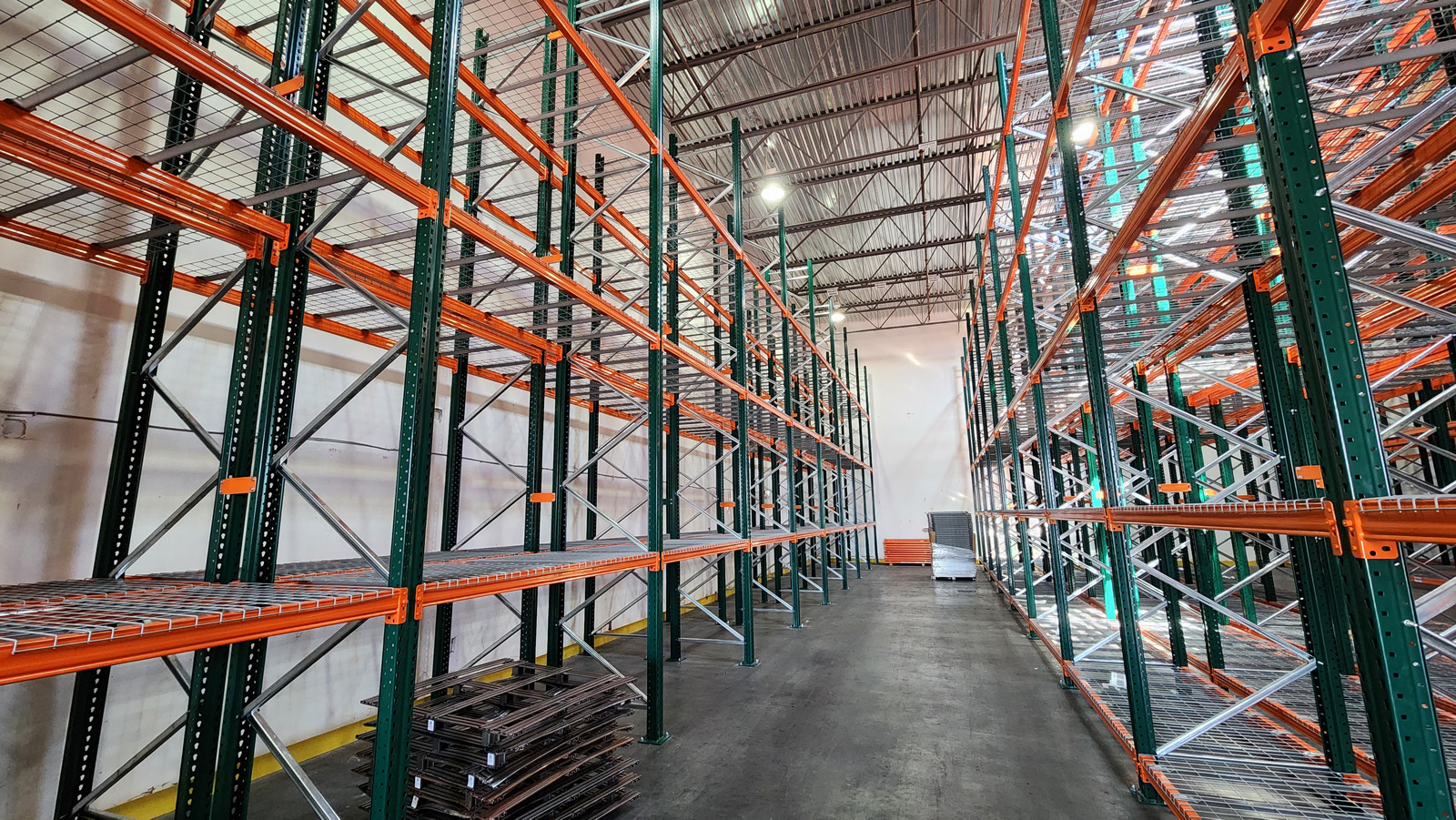

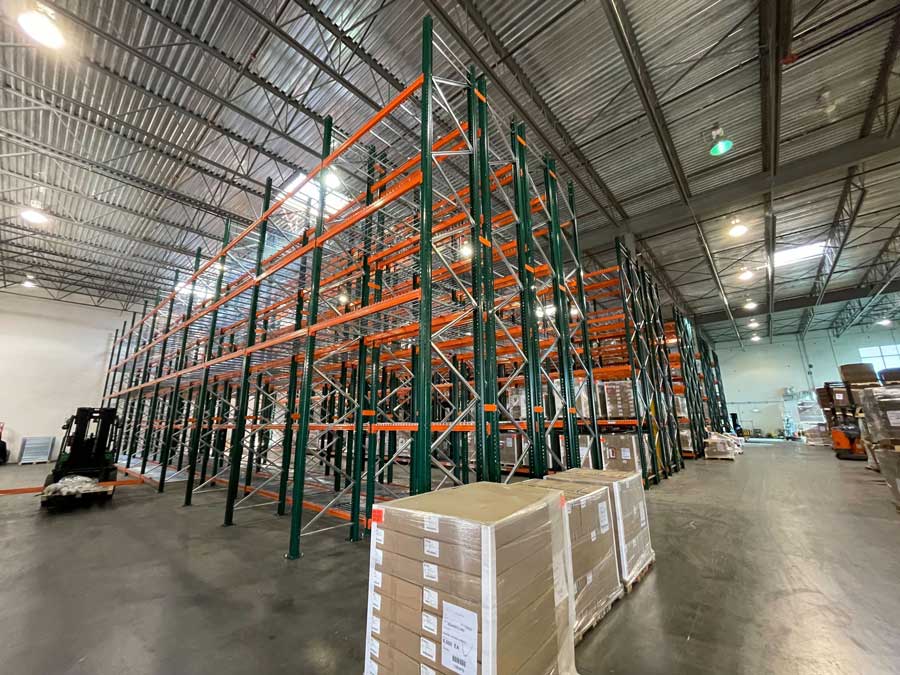

Double-Deep Racking

At RACKsteel Storage Systems, we design, engineer, supply, and install heavy-duty double-deep racking systems engineered to maximize warehouse floor space and dramatically increase pallet storage capacity. Positioned between standard selective racking and high-density deep-lane systems, double-deep pallet racking allows facilities to store pallets two-deep in single-entry rack rows or four-deep in back-to-back setups.

By eliminating half of the forklift aisles required by traditional single-deep selective layouts, this high-density storage solution increases overall pallet storage capacity by up to 30 to 40 percent without expanding your physical building footprint.

How Double-Deep Pallet Racking Works

Double-deep storage operates using specialized material handling equipment, specifically deep-reach forklift trucks or pantograph reach attachments. While direct pallet accessibility is reduced to 50 percent compared to standard selective systems, double-deep systems remain an exceptionally cost-effective racking choice for operations storing multiple pallets per SKU. It functions primarily on a Last-In, First-Out (LIFO) inventory management protocol, making it ideal for high-turnover consumer goods, cold storage facilities, manufacturing staging areas, and general distribution operations where inventory is shipped in paired batches.

Engineering, Seismic Compliance, and Turnkey Installation

Selecting and implementing the optimal double-deep racking configuration requires precise engineering and spatial planning. At RACKsteel, our engineering team provides complete technical support to ensure your system meets stringent safety regulations, local building codes, and structural seismic compliance requirements. We evaluate your concrete floor slab capacity, forklift reach capabilities, aisle clear dimensions, and beam elevations to deliver a tailored warehouse layout that optimizes both vertical height and horizontal floor space.

Key Advantages of RACKsteel Double-Deep Racking

Higher Storage Density: Boosts overall pallet capacity by 30% to 40% over standard selective pallet racks.
Reduced Aisle Footprint: Eliminates unnecessary aisles, freeing up square footage for active order packing, staging, or production.
Lower Cost Per Pallet Position: Delivers high-density storage benefits at a lower initial investment than automated storage or drive-in racking.
Tailored Beam Configurations: Custom-engineered upright frames, heavy-duty safety accessories, and beam spans matched to your operational load profiles.
Comprehensive Turnkey Service: Full lifecycle support, including initial space planning, structural engineering review, procurement, site delivery, and certified installation.

What Are the Components of Double-Deep Racking?

Double-deep pallet racking has several structural components designed for safety, stability, and optimized storage space. The key elements consist of:

Upright frames, which are the structure’s backbone and provide weight support to the racking system.
Load beams, horizontal beams that connect to upright frames and create the levels on which pallets are placed.
Row spacers that are installed between back-to-back rows to maintain distance and structural stability when weight is placed.
Base plates and anchors that help distribute the load down to the floor and improve safety and structural performance.
Safety gadgets, including beam safety clips, column protectors, and rack guards to protect the system against accidental forklift impacts and everyday traffic.

Partner with RACKsteel Storage Systems

Whether you are retrofitting an existing distribution hub, upgrading a cold storage freezer, or consolidating regional warehouse facilities, RACKsteel supplies heavy-duty, dependable double-deep racking systems built for maximum productivity across British Columbia, Alberta, Saskatchewan, Ontario and Quebec. Our team handle every aspect of your system design, layout, installation, maintenance, and repairs.

Contact our industrial storage specialists today to schedule a site consultation, discuss custom engineering specifications, or request a complete project quotation for greater storage capacity.
