Cantilever Racking

Ideal for storing dynamic loads.
START A PROJECT
1-886-599-8531

Are you having trouble storing irregularly shaped items or items that are particularly large or bulky? If so, our cantilever racking systems are for you.

Cantilever racking is perfect for storing irregularly shaped products like pipes, lumber, and furniture. Made from high-strength structural steel, these systems offer adjustable arms for easy loading and maximum floor space with open-front access. They accommodate heavy items safely and are designed for both indoor and outdoor use. With lift truck fork compatibility, cantilever racking helps optimize both vertical and horizontal space, improving organization and efficiency in your warehouse.

Customize it to fit specific dimensions, it’s a versatile solution for your various storage needs.

REQUEST A QUOTE

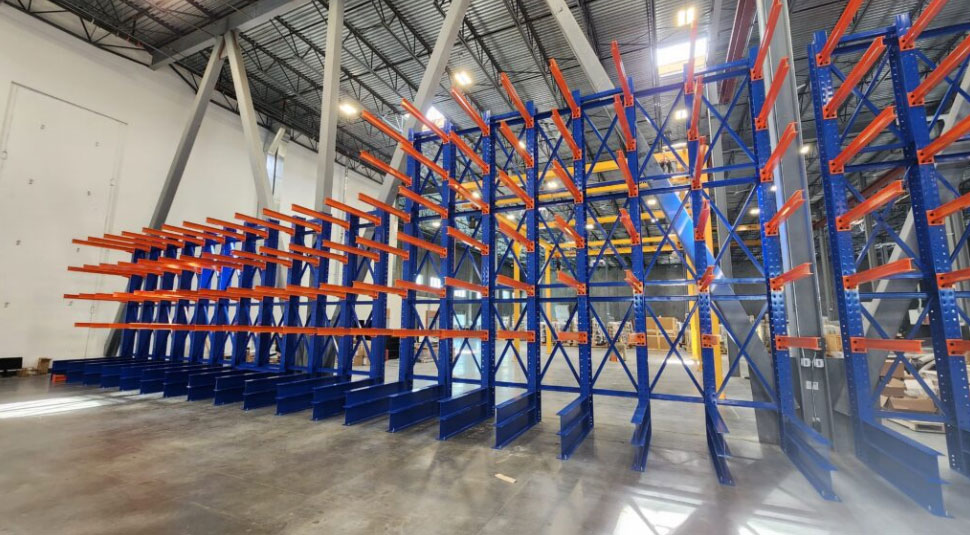

Cantilever Pallet Racking Project
Cantilever Racks For Storage

Available In-Stock Options

Cantilever Type Height Column Capacity Column Spacing Arm Length Arm Capacity Finish
Single Sided
12',H,16'H
Up to 8000lbs
3' to 4'
24", 36", 48"
1500lbs
Poweder Coat Blue/Orange
Double Sided
12'H, 16'H
Up to 16000lbs
3' to 4'
24", 36", 48"
1500lbs
Poweder Coat Blue/Orange

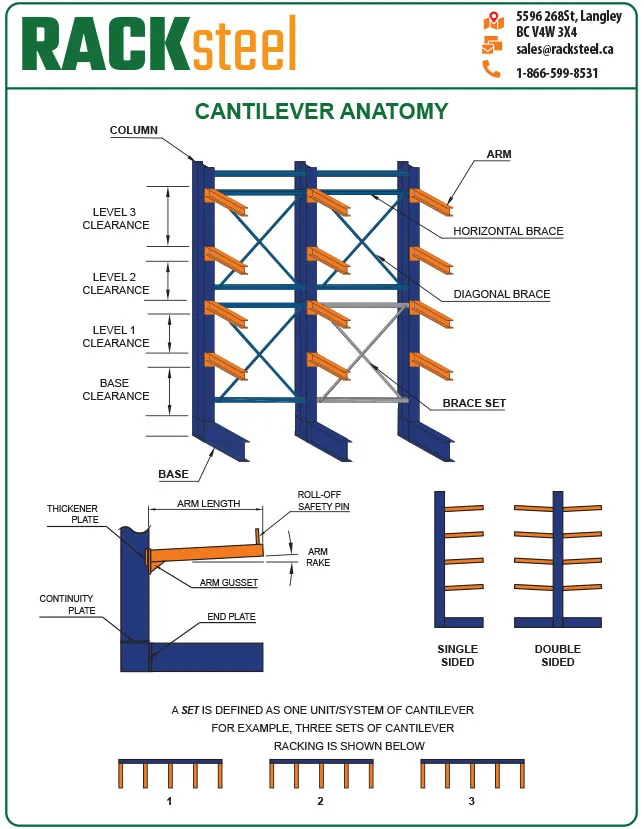

Cantilever Racking Components

Cantilever Racking Components

Columns

Cantilever racking comes in single- or double-sided units. Single-sided units are ideal for wall placement, maximizing limited space, while double-sided units allow access from both sides, doubling storage capacity and fitting central warehouse areas.

Arms

Cantilever racking arms come in various lengths and styles—straight, inclined, and axle—to suit different storage needs. The bolted arms allow for easy conversion and repositioning, ensuring efficient front-loading and adaptability for changing inventory.

Bracing

Cantilever rack braces stabilize racks and prevent sway. Available in different designs, widths, and lengths (8 to 25 feet), they are essential for expanding, repairing, or building new racks, ensuring the system is customized and structurally sound.

Choosing the Right Cantilever Racking System

When selecting your cantilever racks, it’s important to consider several factors for the best fit for your facility.
Choose cantilever racks from RACKSteel
Key factors to consider:
  • Rack Type: Decide between single or double-sided racks based on space and accessibility needs.
  • Post Height: Choose the appropriate height for storing irregular items like lumber or pipes.
  • Post Spacing: Ensure proper center-to-center distance for secure storage.
  • Arm Length: Pick the right arm length for storing items like long pipes or shorter shelves.
  • Arm Quantity: Determine the number of arms needed per post to support your items.
  • Load Capacity: Calculate the maximum load per arm for safety and durability, especially with heavy-duty items.
  • Arm Style: Choose between straight or inclined arms based on the shape and stability of your products.
  • Environmental Factors: Consider factors like water exposure for outdoor storage and necessary supports.
  • End-of-Arm Stops: Decide if you need stops (or pins) to prevent product movement.
  • Rack Length: Measure the overall length to ensure front access and efficient space usage.
Contact a RACKsteel Material Handling representative to help determine the optimal layout.

Cantilever Storage Solutions

  • Tubes
  • Pipes
  • Steel Bars
  • Metal Extrusions
  • Lumber
  • Moldings
  • Metal and Plastic Sheets
  • Carpet Rolls
  • Metal Beams
  • Furniture
  • Construction Materials
  • Appliances
  • Doors
  • Trusses

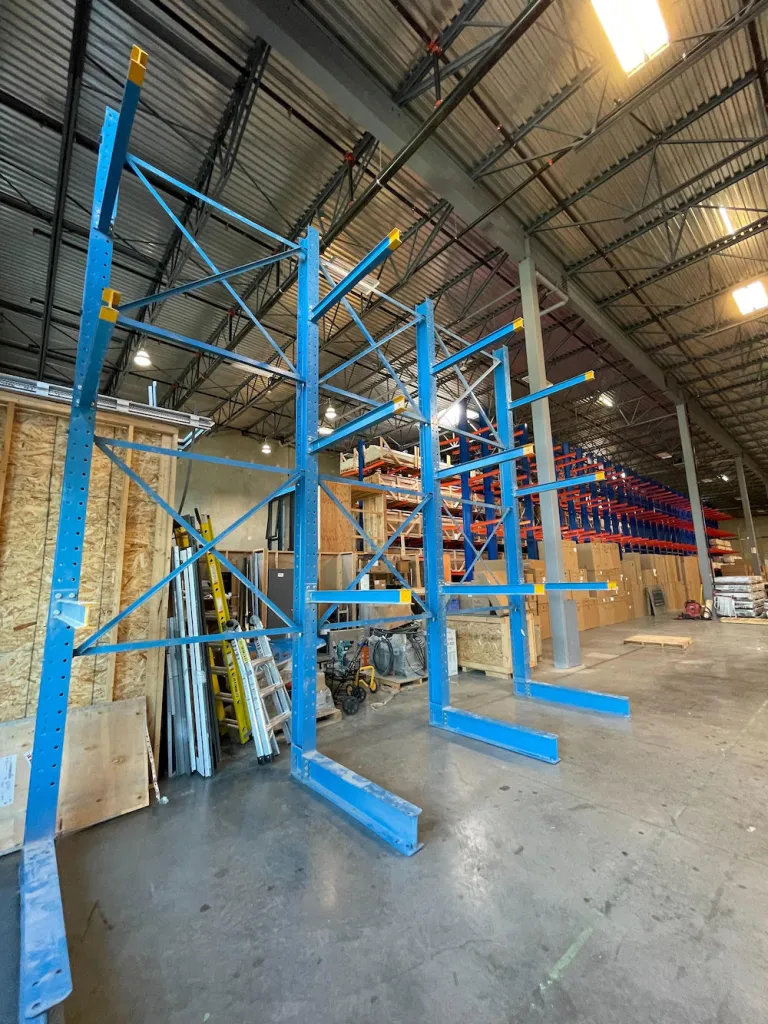

Racksteel Cantilever Racks Project
Racksteel Cantilever Racks Project 2

Robust Storage Options

Cantilever racking systems provide durable storage solutions for a variety of needs, including light-duty, medium-duty, and heavy-duty applications. Each option is customizable to ensure efficient space utilization and easy access, no matter the load.

Light-Duty

Ideal for lightweight products like small pipes, molding, and trim, light-duty racks are designed for smaller warehouses with limited space and minimal product variability.

Medium-Duty

Built for medium-weight items like hardware, appliances, and furniture, these racks balance capacity and accessibility. They are ideal for forklift retrieval and versatile storage requirements.

Heavy-Duty

Heavy-duty cantilever racks are built to handle large, bulky items such as steel bars, timber, and prefabricated products. Designed for use with lift trucks and cranes, they maximize storage capacity while supporting high-weight loads.

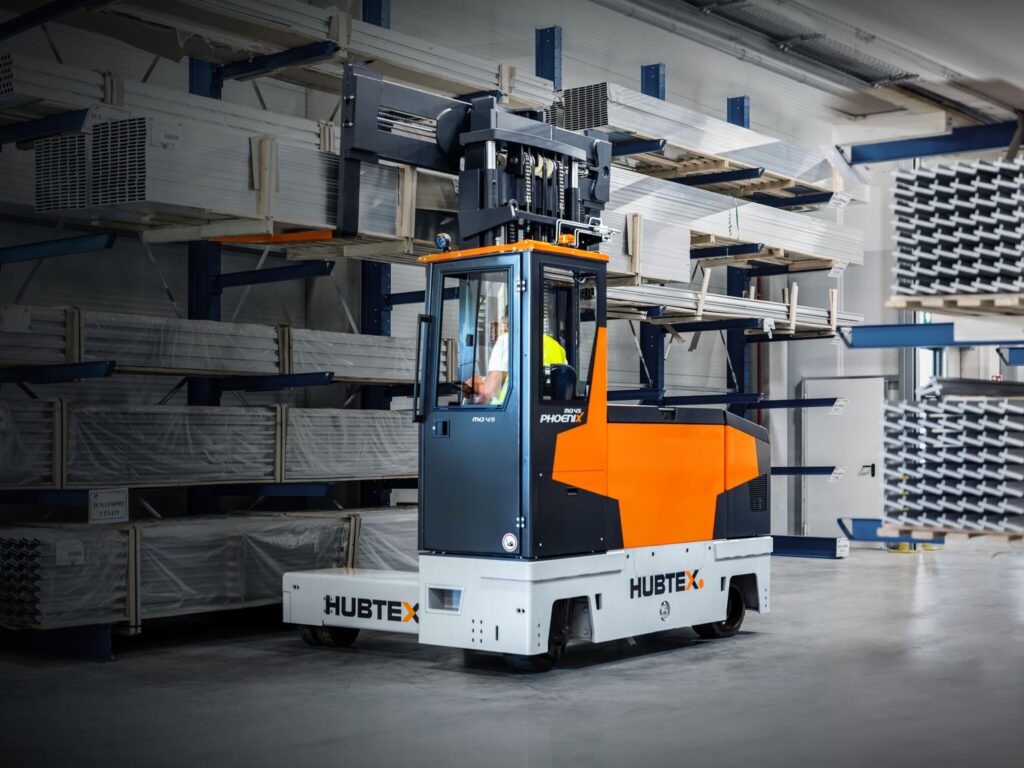

Maximize Operational Efficiency By Pairing with Forklifts

Boost your storage and handling efficiency by pairing cantilever racking with HUBTEX Multidirectional Forklifts. Their precise maneuverability makes loading and unloading long materials in tight spaces a breeze.

Get started today – Contact us to optimize your storage system.

LEARN MORE

Why Choose RACKsteel Material Handling?

RACKsteel Material Handling delivers efficient, cost-effective storage solutions tailored to your needs. We offer project management, turnkey solutions, and customized racking & forklift systems designed to improve productivity.

  • No matter what your storage or material handling needs are, trust RACKsteel Material Handling to find a solution. From standard pallet racks to custom shelving systems, our products are built for durability and efficiency.
  • We also pride ourselves on having a truly unique crew that works around your warehouse operations. Our crew is professionally trained, reliable, courteous, and, above all, solutions-oriented.
  • We also supply HELI and Hubtex forklifts to optimize material handling for pallet racking and warehouse storage systems. Our forklifts ensure the safe, precise, and efficient movement of heavy or oversized loads, enhancing workflow and maximizing storage capacity in industrial environments.

Let our team of specialists optimize your storage system for better efficiency and performance.

Schedule a consultation or free site visit.

START A PROJECT
1-886-599-8531

Latest Projects

Cantilever Racking Project with Bothwell Manufacturing

Bothwell Manufacturing

Our team designed and installed heavy-duty double-posted and double-braced pallet racking, and cantilever racking for Bothwell Manufacturing. Addressing both weight and seismic requirements, the project required intricate planning, advanced engineering solutions, and streamlined slab improvement, leading to a 30% increase in operational efficiency.

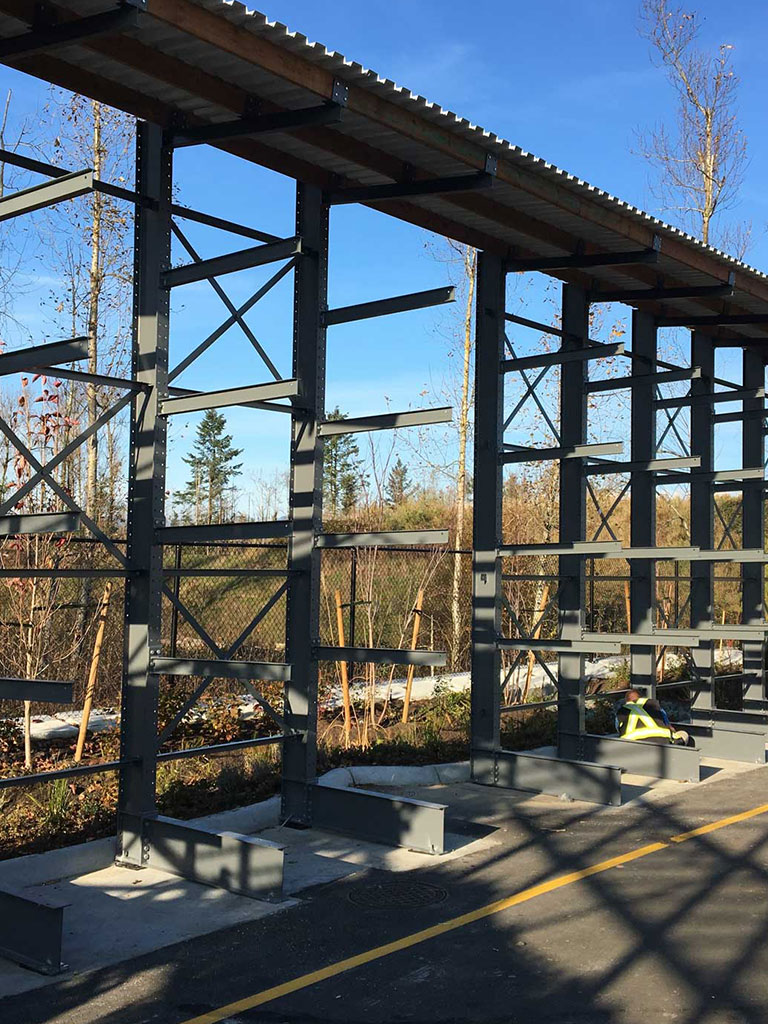

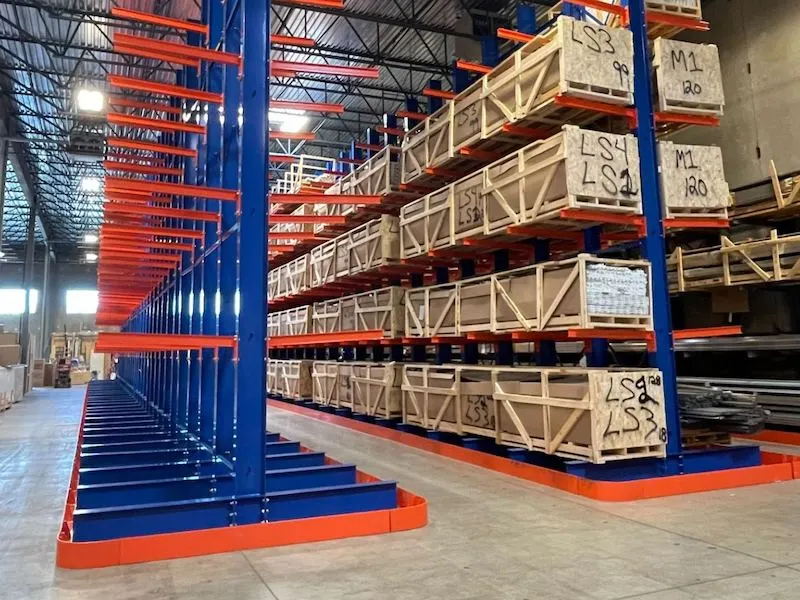

Cantilever Racking Project with Windows and Doors company

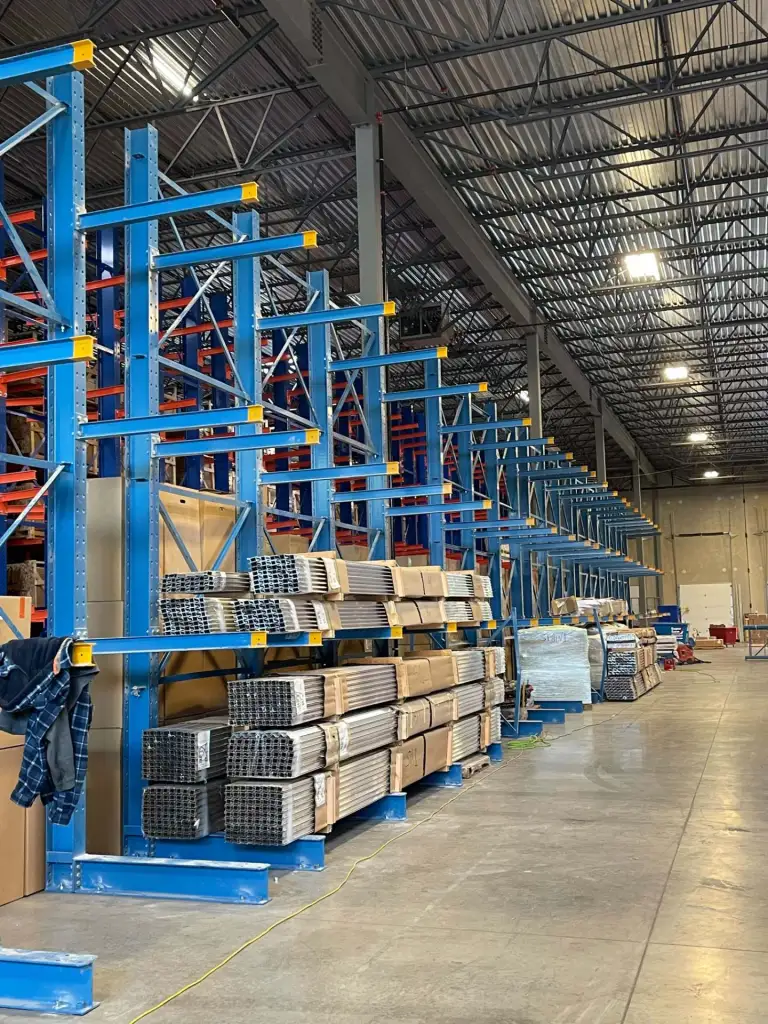

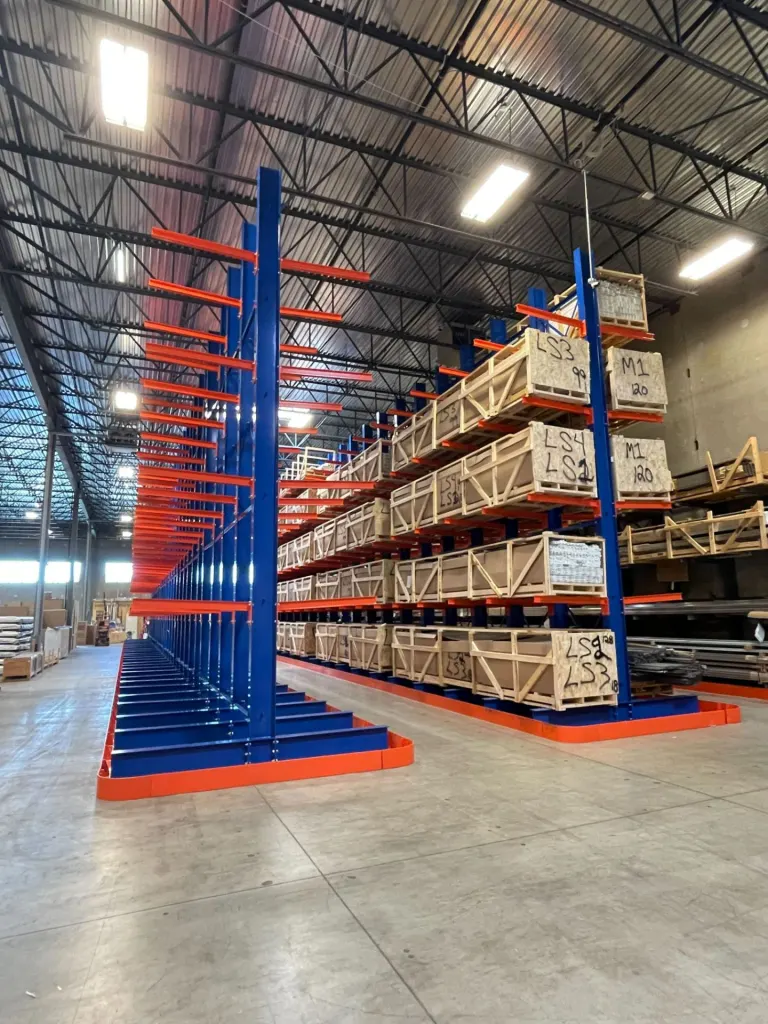

Windows and Doors Company

Our team at RACKsteel Material Handling completed a complex installation of heavy-duty cantilever racking for a fenestration industry client, accommodating large, heavy materials. The project included custom guardrail design for forklift tolerances and on-site fabrication, ensuring safe and precise completion.

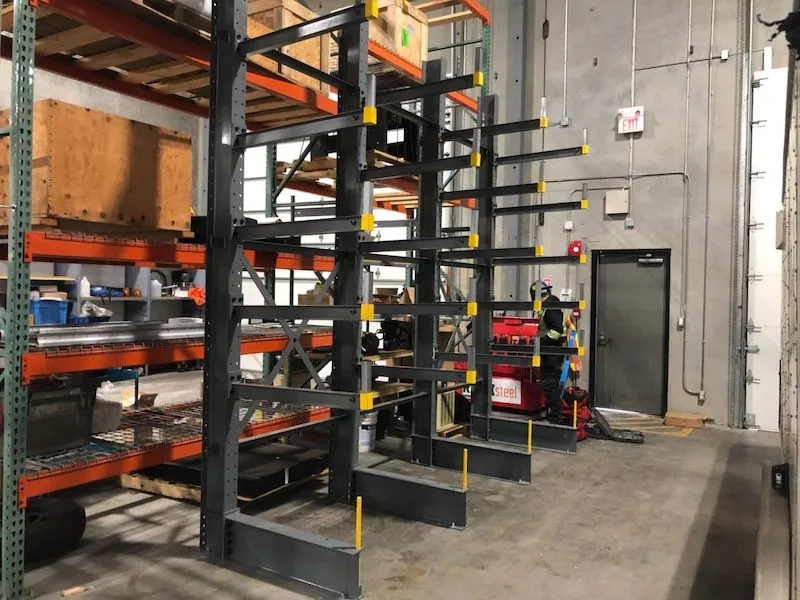

Cantilever Racking Project with Wiseworth Canada Industries

Wiseworth Canada Industries

Wiseworth Canada Industries needed an efficient storage solutions for stainless steel and aluminum pipes, so we installed a cantilever racking system. The process involved on-site preparation for safe unloading and consistent communication with the manager for smooth installation updates.

Cantilever Racking Project with Woodys RV World

Woody's RV World

For Woody's RV World, we implemented a multi-phase shelving installation in a new RV dealership structure. This included 16-foot-high pallet racking and later, cantilever racking, followed by baby rack shelving and weight-level stickers in early 2022.

Racking Products

Selective Pallet Racking
Double Deep Racking
Cantilever Racking
Used Pallet Racking

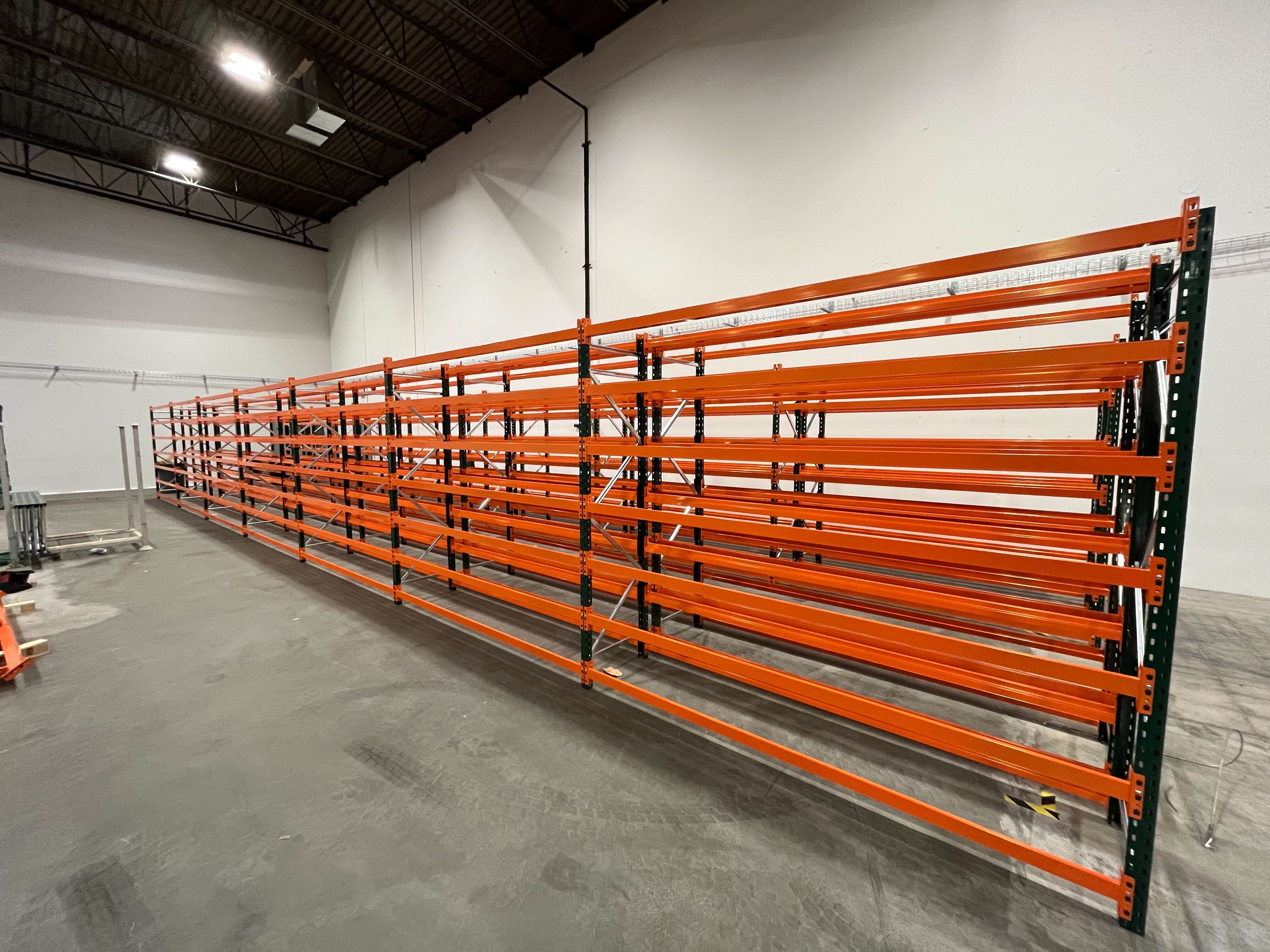

Baby Rack 1
Shelving

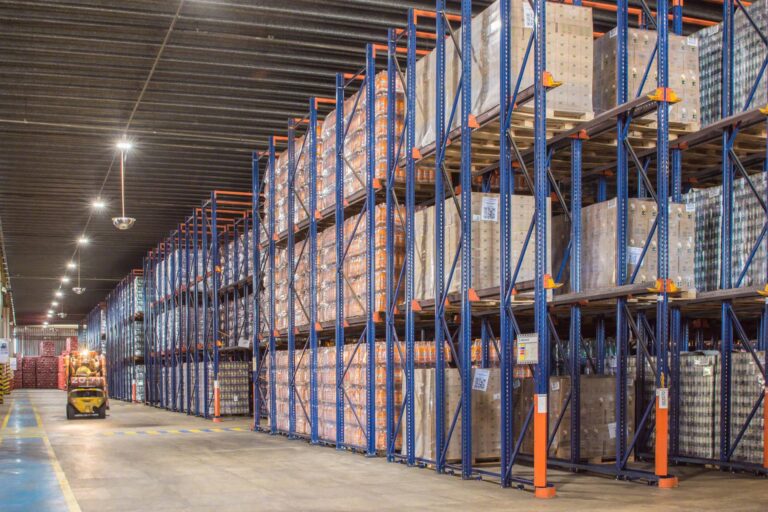

DRIVE-IN RACK 2
Drive In Racking

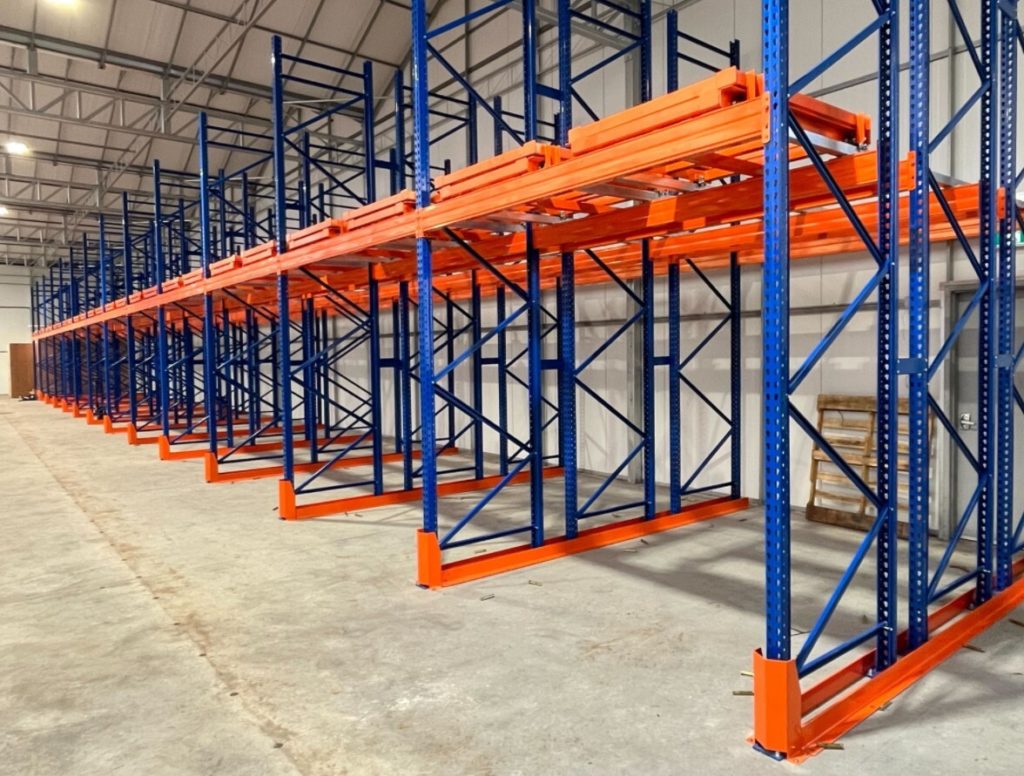

PUSH BACK RACK 2
Push Back Racking

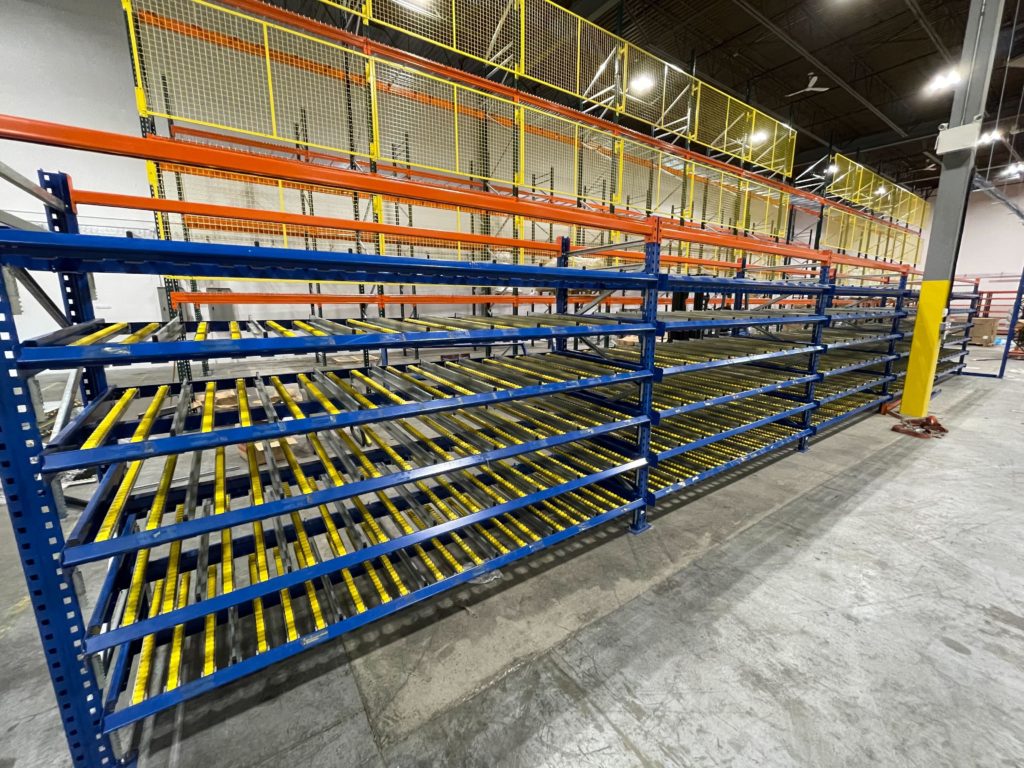

CARTON FLOW 2
Carton Flow

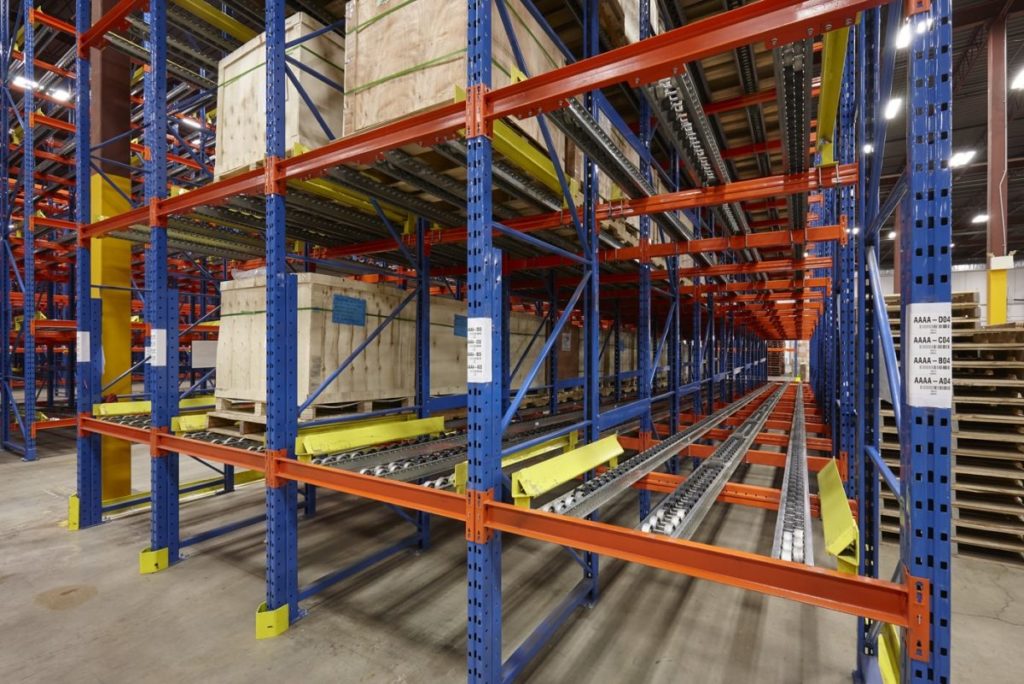

PALLET FLOW 2
Pallet Flow

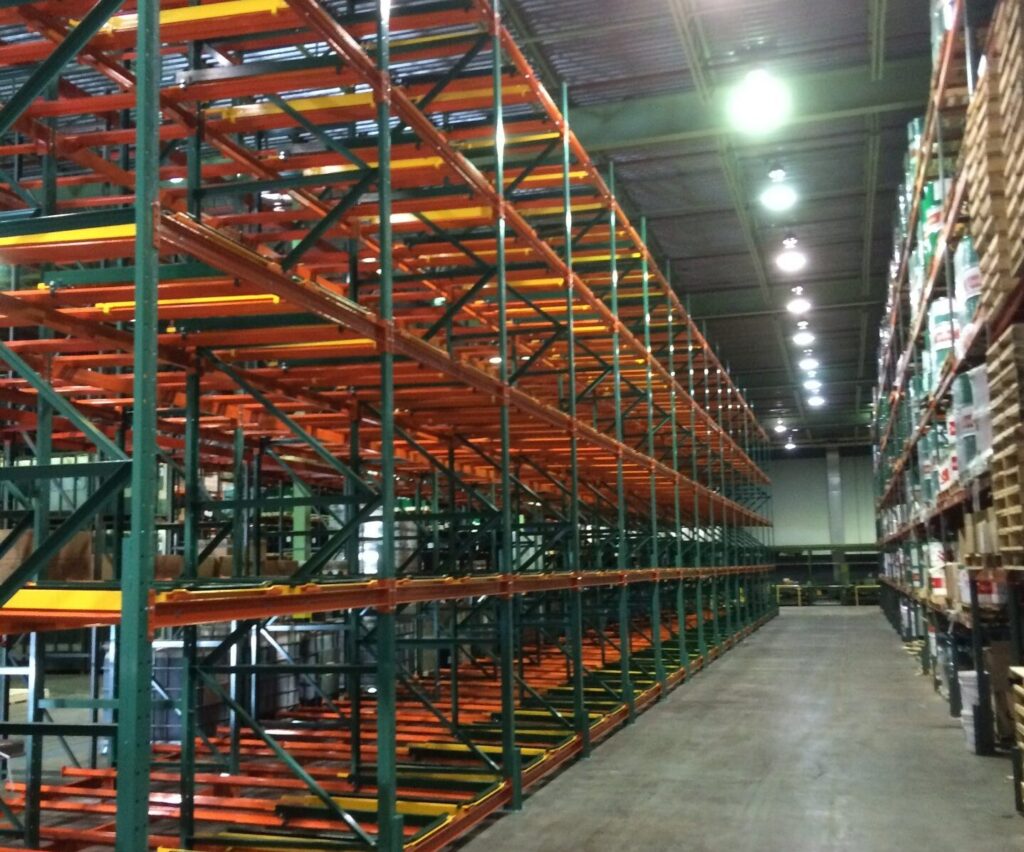

Structural Steel Pallet Racking
